Casa /Prodotti/Fotocamera PTZ Panasonic/20X 30X Zoom Video Conference System Solution Equipment ptz 4K Video Conference Camera For Live Streaming Telemedicine TV-620USB

20X 30X Zoom Video Conference System Solution Equipment ptz 4K Video Conference Camera For Live Streaming Telemedicine TV-620USB

5.0 Pieces
MOQ
20X 30X Zoom Video Conference System Solution Equipment ptz 4K Video Conference Camera For Live Streaming Telemedicine TV-620USB
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Type: Video Conference System
Simultaneous Interpretation: No
Model Number: TV-620USB
HD Interface 1: DVI-I
HD Interface 2: USB3.0
Control: 8-pin mini DIN
Power Interface: HEC3800
Power Adapter: AC110V-AC220V to DC12V / 2.5A
Input voltage: DC12V
power consumption: 18W
Dimension: 265 * 144 * 171 (mm)
Weight: 1.9Kg
Storage temperature: -10 ℃ to + 60 ℃
Informazioni di base
Model Number: TV-620USB
Termini di pagamento e spedizione
Packaging Details: 1 unit per carton box
Supply Ability: 1000 Piece/Pieces per Month
Descrizione di prodotto
Products Description

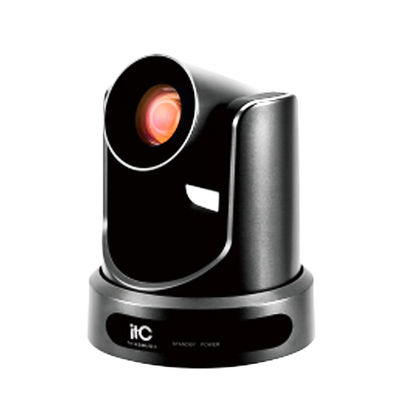

Camera TV-620USB
Embedded software: USB camera embedded software V2.0 in HD video conferencing ((20X,1080P full HD, high performance, wide perspective, big zoom)
(support 1080P/60, 1080P/50, 1080I/60, 1080I/50, 1080P/30, 1080P/25, 720P/60, 720P/50, 720P/30, 720P/25) )

Feature

1. The world’s first conferencing camera which support H.265 encoding, can achieve full HD 1080p ultra-low bandwidth transmission.
2. Use the new generation Panasonic 1/2.7 inch, 2.07 million effective pixels high-quality HD CMOS sensor, can achieve max 1920x1080 high-resolution high-quality image.
3. 20× optical automatic zoom lens, 32× electronic zoom, focal length: f4.42mm ~ 88.5mm, F1.8 ~ F2.8.
4. Ultra-high SNR new CMOS image sensor can effectively reduce image noise in the case of the low illumination, while use the 2D and 3D noise reduction algorithm to reduce the image noise significantly .
5. Supporting USB3.0 interface, it can transmit uncompressed original video image, while compatible with USB2.0.
6. 0 interface support output 1080p/60, 1080p/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 video format.
7. 0 interface support output 1080p/10,720p/25,960x540p/30, 960x540p/25, 640x360p/60, 640x360p/50 video format.
8. Support HDMI high-definition output, USB3.0, HDMI, network output at the same time.
9. HDMI interface supports output 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25 video format.
10. Use RS232 and RS485 serial port to control the camera, support remote camera position preset and call, wide range, high speed, low noise control camera translation / tilt / zoom.
11. The position can be pre-set, including the level, pitch, zoom to preset, max 255 preset, support power-down save.
12. Support image level, vertical flip, image freeze, face detection, backlight compensation, 2D & 3D digital noise reduction function.
13. Support local storage function, without NVR can realize U disk local directly recording.
14. Horizontal viewing angle 60.7°~ 3.36°, horizontal rotation angle -170°~ + 170°, vertical rotation angle -35°~ + 90°, horizontal speed 1.7°~100°/s, vertical Speed 1.7°~69.9°/ s.

Specification
Input / Output Interface
Video interface
HDMI/USB3.0/USB2.0。
Audio interface
1 Line in 3.5mm
Control interface
1 RS232 In / 1 RS232 Out / 1 RS485 In / 1 RS485 Out.
Network interface
1 RJ45
Power interface
JEITA type power socket.
Electrical Characteristics
Power adapter
AC110V-AC220V to DC12V/2.5A.
Input voltage
DC12V(DC11.5-DC12.5V)。
Power consumption
12W(MAX)。
Physical Characteristics
Relative humidity
10%~85%。
Operating temperature
0℃~+45℃。
Size (W×H×D)
169mm×142mm×164mm。
Weight
1.35Kg。
