Casa /Prodotti/Telecamera di sicurezza PTZ esterna/Outdoor HD NIGHT VISION IP 1080P 20X Opticcal Zoom 4G Wifi Starlight IR 300M 60W 120W Solar Panel IP PTZ Camera

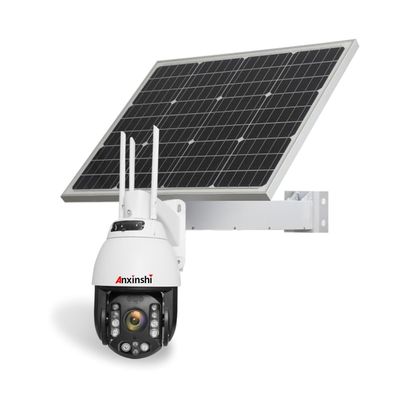

Outdoor HD NIGHT VISION IP 1080P 20X Opticcal Zoom 4G Wifi Starlight IR 300M 60W 120W Solar Panel IP PTZ Camera

1 Piece
MOQ
Outdoor HD NIGHT VISION IP 1080P 20X Opticcal Zoom 4G Wifi Starlight IR 300M 60W 120W Solar Panel IP PTZ Camera
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: ASRIHPT695G-020-22+SUN60W-40A/120W-40A/120W-80A
Warranty: 2 years
Special Features: NIGHT VISION, Motion Detection, Waterproof / Weatherproof
Sensor: CMOS
Network: wifi
Function: Waterproof / Weatherproof, PAN-TILT, NIGHT VISION
Video Compression Format: H.265
Data Storage Options: NVR, SD Card
Application: Outdoor
Customized support: Customized logo
Image Sensor: 1/3" 2.0MPixel Sony CMOS IMX307
Zoom: 20X , f=4.7mm~94mm, D/N( ICR-Cut) ,F1.6~F3.0
Video Compression: H.265 Main Profile/H.264 Main Profile/M-JPEG
Onvif: Onvif 2.4
Night vision distance: 300m
Power Supply: DC12V±10%; 5A
Mini SD Card: Up to64GB(Optional)
Waterproof: IP66 Water-proof
APP: CamHi
Channels: 4
Certificazione: ce, FCC, RoHS
Informazioni di base
Certificazione: ce, FCC, RoHS
Model Number: ASRIHPT695G-020-22+SUN60W-40A/120W-40A/120W-80A
Termini di pagamento e spedizione
Packaging Details: Standard Paper Box Packing/Carton WIFI camera
Descrizione di prodotto
Product Description
Specification
Technical
Camera:
1.1/3” 2.0MPixel Sony CMOS IMX307
2.20X optical zoom, auto focus
3.2.0MP available
4.True Day/Night, 3D DNR, Digital WDR
5.Backlight compensation, and auto gain control (AGC)
Network Features:
1.Main Stream: (1920*1080)30fps
2.Support the P2P or Android, IOS
3.Support Onvif2.6
4.H.265 main profile/H.264 main profile & M-JPEG Dual-stream Encoding ,Three Simultaneous video streams
5.Standard SDK,CGI,easily to be integrated with other digital systems
6.Support a variety of network protocol such as TCP/IP/ HTTP/ NTP/ IGMP/ DHCP/ UDP/ SMTP/ RTP/ RTSP/ ARP /DDNS /DNS/ P2P
Dome Features:
1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
2. Imported array IR LED, auto adjust zoom according to different distance
3. IR Laser range 300M,4pcs Telefocus Laser Lights,2pcs medium focus array lights,4PCS near-focus array lights,2PCS alarm flashing
lights
4. With digital temperature controlling system protecting IR LED
5. 360 degree continued rotation, manual pan speed 0~240°/S, manual tilt speed 0~120°/S, preset speed 400°/S.
6. 6 tours, DC12V
7.With two-way audio, built-in speaker and pickup, standard voice alert function.
Form parameters

Mode

Name and Description
H.265 1080P Starlight IR 300M Laser 4G IP PTZ Camera
ASRIHPT695G-020-22







Camera
Image Sensor
1/3” 2.0MPixel Sony CMOS IMX307
Effective Pixels
2.0 Mpixes
Min. Illumination
Color：0.1Lux@(F1.6, AGC ON) B/W: 0.01Lux@(F1.6, AGC ON)
Zoom
20X , f=4.7mm~94mm, D/N( ICR-Cut) ,F1.6~F3.0
Day/Night
Day / Night / External control（IR Cut Filter）
SNR
≥50dB(AGC OFF)
AGC
Auto / Manual
White balance
Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Digital noise Reduction
DNR,3DNR
Shutter speed
1/2 - 1/20,000s














Network
Video Compression
H.265 Main Profile/H.264 Main Profile/M-JPEG
Streams
Dual streams
Frame Rate
Main stream:
1920*1080, 1-25(30)fps; 1280*720, 1-25(30)fps
Sub-stream:
480*640, 1-25(30)fps; 480 *360 1-25(30fps
352*288, 1-25(30)fps; 176*144, 1-25(30)fps
MJPEG:
1920*1080, 1280*720, Close
Bitrate
CBR/VBR, bitrate：32Kbps~10Mbps variable
Audio Compression
G711，PCM
P2P
Android、IOS
Protocols
TCP/IP/ HTTP/ NTP/ IGMP/ DHCP/ UDP/ SMTP/ RTP/ RTSP/ ARP /DDNS /DNS/ P2P
Motion detect
Support
Privacy Zone Masking
Support
Onvif
Onvif 2.4
Network
10/100M Base-TX Ethernet, RJ45 Connector
Mini SD Card
Up to64GB(Optional)


IR Parameters
Luminary
4pcs Telefocus Laser Lights+2pcs medium focus array lights+4PCS near-focus array lights+2PCS alarm flashing lights
Night vision distance
300M
Lamp control
Auto, Manual, by Zoom









Dome Features
CPU Type
32 bit ARM CPU
Address
0~255(soft address and hard address)
Pan Range
360° continued rotation
Tilt Range
0~90°(Auto Flip)
Manual pan speed
0~240º/S
Manual tilt speed
0~120°/S
Preset speed
400°/S
Actual preset Accuracy
±0.10°
Preset points
255
Other function
6 Tour, Intelligent Three dimensional Scan, 4Pattern group ,Operation recall, Manual continued Auto Scan
Intelligent power
off real time memory
automatic save functions setting ,automatic wake up tour function


General
Work temperature
External–35℃~55℃
Work Humidity
0%~90% (Non condensing)
Power
DC12V±10%; 5A
Consumption
<50W
Features
1.A grade monocrystalline silicon solar panel, 120W/18V (two boards)
2.Lithium battery can be equipped with 40AH/60AH/80AH
3.maximum output: 12V5A,
4.Ordinary camera can supply at least 40~120 hours.
5.Battery-specific waterproof box, with switch, aluminum alloy bracket
6.2pcs camera-specific DC interface
7.Suitable for 4G speed dome camera, or ordinary IP camera (can be transmitted over wireless bridges)
Technical parameters

Mode

Name and Description
solar panel optonal for all 4G wifi Camera or IP PTZ Camera
SUN120W-40A/H
SUN120W-60A/H
SUN120W-80A/H









Solar panels
Maximum Power (Pmax)
120W (60W×2)
Maximum Power Voltage (Vmp)
18V
Maximum Power Current (Imp)
1.66A
Open-circuit Voltage (Voc)
21.4V
Short-circuit Current (Isc)
1.83A
Cell Type
A grade monocrystalline
No.of cells
72 (4×9×2)
Dimensions
670*535*25mm（Single solar panel）
Weight
3.8kg（Single solar panel）
Front Glass
3.2mm, Anti-Reflection Coating, High Transmission, Tempered Glass
Frame
Aluminium Alloy













Battery
Nominal capacity
40AH
60AH
80AH
Out voltage
DC12V (2 DC interfaces)
Output current
≤5A
Internal Resistance
≤300mΩ
Battery Charge
Standard Charge: 2A, Quick Charge: 4A
Fully charged time
4h
8h
12-14h
Cycle Life
> 500times
Overcharge protection
DC12.6V
Overdischarge protection
DC9V
Charging Temperature
0℃~45℃
Discharging Temperature
–20℃~60℃
Storage Temperature
–20℃~40℃
weight
3kg
4.5kg
6kg
Power supply time
Power supply time = (Battery capacity × Out voltage) / Camera power
max power / Average power (calculated with 4G camera power)
22h / 31h
33h / 46h
44h / 61h

Bracket
Installation method
Wall mounted
Dimensions
1100*700*400mm
Weight
5kg
Others
Packing list
Solar panels × 2, Lithium battery × 1, Bracket × 1, Expansion screw × 4
Total weight
15.2kg
16.7kg
18.2kg
Company Profile
company set the development, production, sales and service as a whole, products to professional intelligent,digital and network video surveillance equipment. To provide our clients with professional security video surveillance products and customized to meet customer demand system solutions as their responsibility, toprovide customers with system design, product supply and assembly manufacturing, sales and trade cooperation integration services. Our products include: intelligent high speed dome cameras, intelligent medium speed dome cameras, low speed dome cameras, mini high speed dome cameras, IR Auto-tracking speed dome cameras, IR speed dome cameras,IR box cameras, IP speed dome cameras, IP box cameras, intelligent IP Auto-tracking dome cameras, intelligent keyboard controllers, 3D dome cameras, etc. We also provide OEM & ODM service to famous brands. Due to our long-lasting effort in OEM and manufacturing, we have won great recognition and praise from customers home and abroad.
FAQ
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples to you. The prices of the samples are the same as those on the pricelist. Express delivery charge depends on the quantity of the samples.

2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will offer the price by e-mail. And our price list will keep updated every month.

3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest airport. If the order quantity is large, we may ship by sea container.

4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer), MoneyGram or Western Union as payment term for small order and L/C for larger order.

5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.

6. About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty problem products, we can replace with new products in next order. For larger qty problem products, we can accept returned problematic products, then we check them and replace them by good quality products.

7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.

8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
